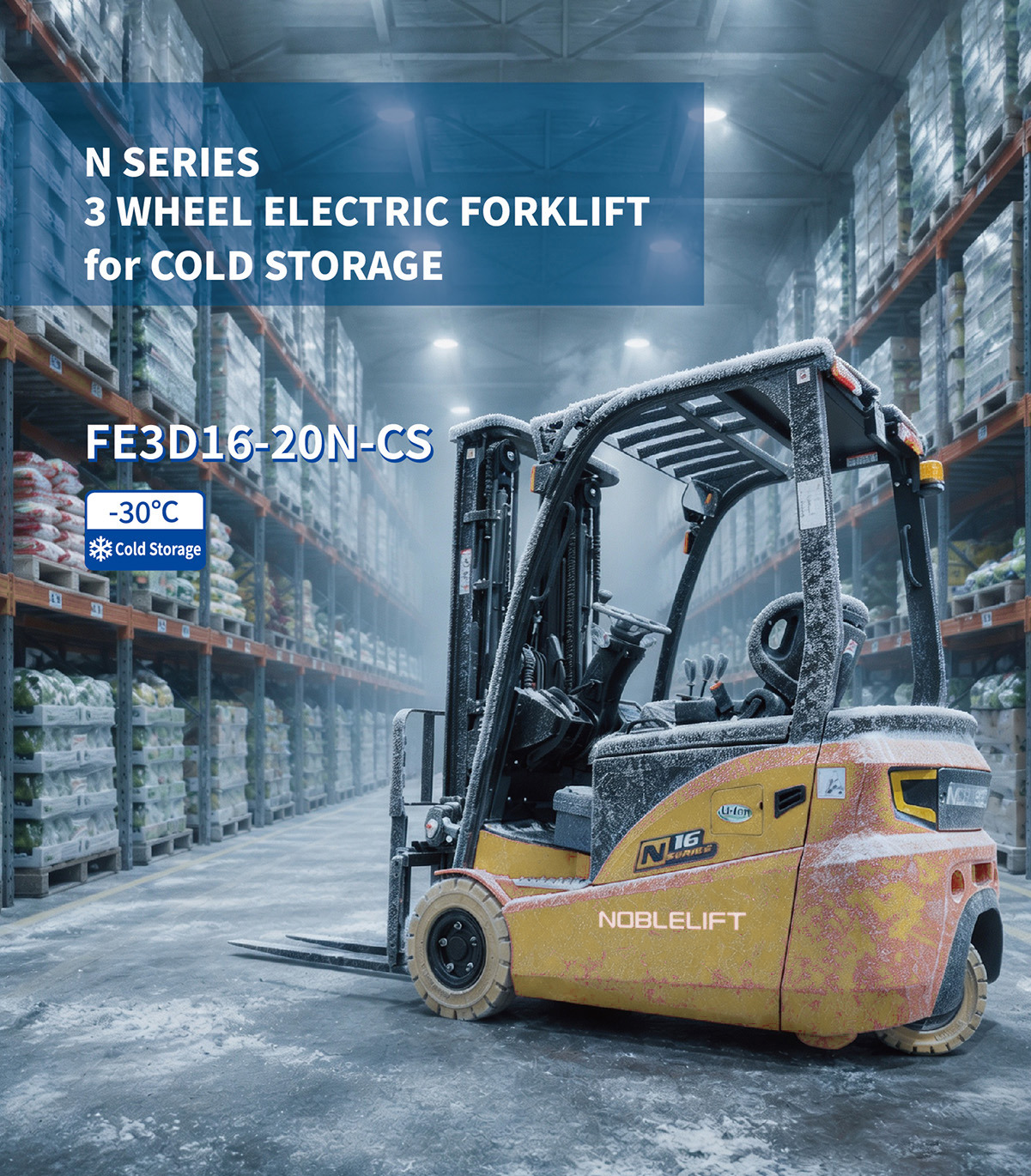

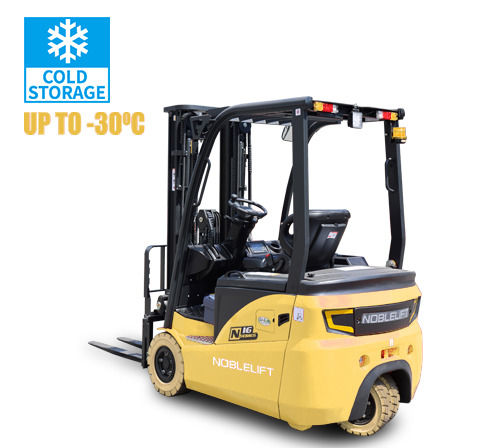

1600—2000kg N Series Forklift for Cold Storage

Specifikationer

Manufacturer's  type designation	FE3D16N-CS / FE3D18N-CS / FE3D20N-CS
Load capacity/rated load	Q（kg） / 1600 / 1800 / 2000
lowered mast height	mm / 2008 / 2008 / 2008
Lift height	mm / 3000
Overall length	mm / 2845 / 3000 / 3130
Fork dimensions	s/e/l  (mm) / 35/100/920 / 40/100/1070 / 40/100/1070
Aisle  width for pallets 1000×1200 crossways	mm / 3248 / 3253 / 3383
Turning radius	mm / 1550 / 1550 / 1680
Travel speed,laden/unladen	km/h / 14/15 / 14/15 / 13/15
Battery voltage,nominal capacity K5	V/Ah / lead-acid: 48 /  455(490/560） / lead-acid:  48 / 455(490/560） / lead-acid:48  / 560(630）
Lion:51.2 / 277(412/554)	Lion:51.2  / 277(412/554) / Lion:51.2  / 277(412/554)
