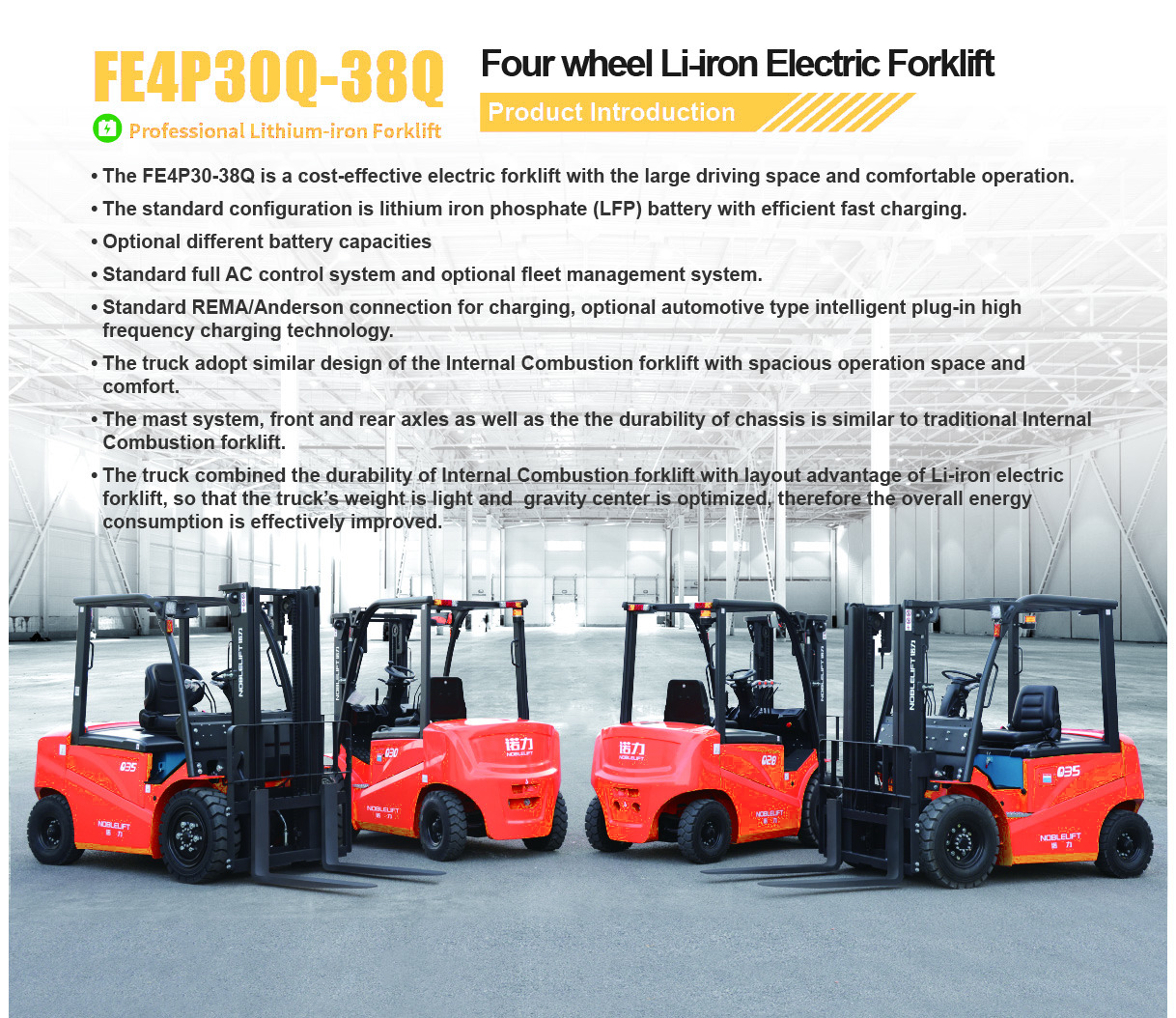

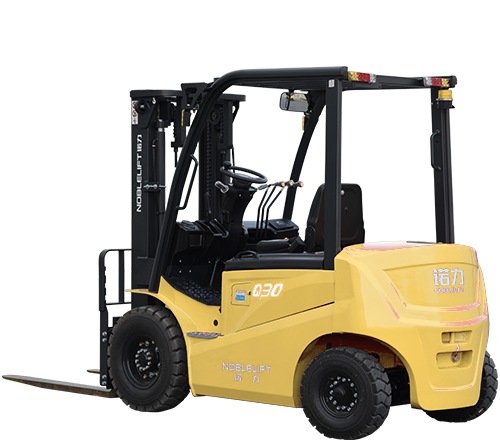

3000/3500/3800KG Q Series Lithium Forklift

Specifikationer

Manufacturer's type designation	FE4P30QE( Lion ) / FE4P30Q( Lion ) / FE4P30Q2 ( lead-acid ) / FE4P30QY   (permanent magnet) / FE4P30QH( Lion ) / FE4P35QE( Lion ) / FE4P35Q( Lion ) / FE4P35Q2( lead-acid ) / FE4P35QY   (permanent magnet) / FE4P35QH( Lion ) / FE4P38Q( Lion )
Load capacity/rated load	Q（t） / 3 / 3 / 3 / 3 / 3 / 3.5 / 3.5 / 3.5 / 3.5 / 3.5 / 3.8
Service weight incl. battery	kg / 4260 / 4260 / 4570 / 4260 / 4260 / 4640 / 4640 / 5030 / 4640 / 4640 / 4840
lowered mast height	mm / 2070 / 2070 / 2070 / 2070 / 2070 / 2185 / 2185 / 2185 / 2185 / 2185 / 2185
Free lift	mm / 3000 / 3000 / 3000 / 3000 / 3000 / 3000 / 3000 / 3000 / 3000 / 3000 / 3000
Overall length	mm / 3813 / 3813 / 3666 / 3813 / 3813 / 3858 / 3858 / 3671 / 3858 / 3858 / 3858
Overall width	mm / 1226 / 1226 / 1226 / 1226 / 1226 / 1226 / 1226 / 1226 / 1226 / 1226 / 1226
Fork dimensions (s/e/l)	mm / 45/122/1070 / 45/122/1070 / 45/122/1070 / 45/122/1070 / 45/122/1070 / 50/122/1070 / 50/122/1070 / 50/122/1070 / 50/122/1070 / 50/122/1070 / 50/122/1070
Turning radius	mm / 2400 / 2400 / 2350 / 2400 / 2400 / 2440 / 2440 / 2350 / 2440 / 2440 / 2440
Travel speed,laden/unladen	km/h / 14/15 / 14/15 / 14/15 / 14/15 / 18/20 / 14/15 / 14/15 / 14/15 / 14/15 / 18/20 / 13/14
Max.Gradient performance,   laden/unladen S2 5 min	% / 15/20 / 15/20 / 15/20 / 15/20 / 20/28 / 15/20 / 15/20 / 15/20 / 15/20 / 20/28 / 15/20
Lift speed,laden/unladen	m/s / 0.3/0.4 / 0.3/0.4 / 0.3/0.4 / 0.3/0.4 / 0.44/0.52 / 0.28/0.4 / 0.28/0.4 / 0.28/0.4 / 0.3/0.4 / 0.44/0.52 / 0.26/0.38

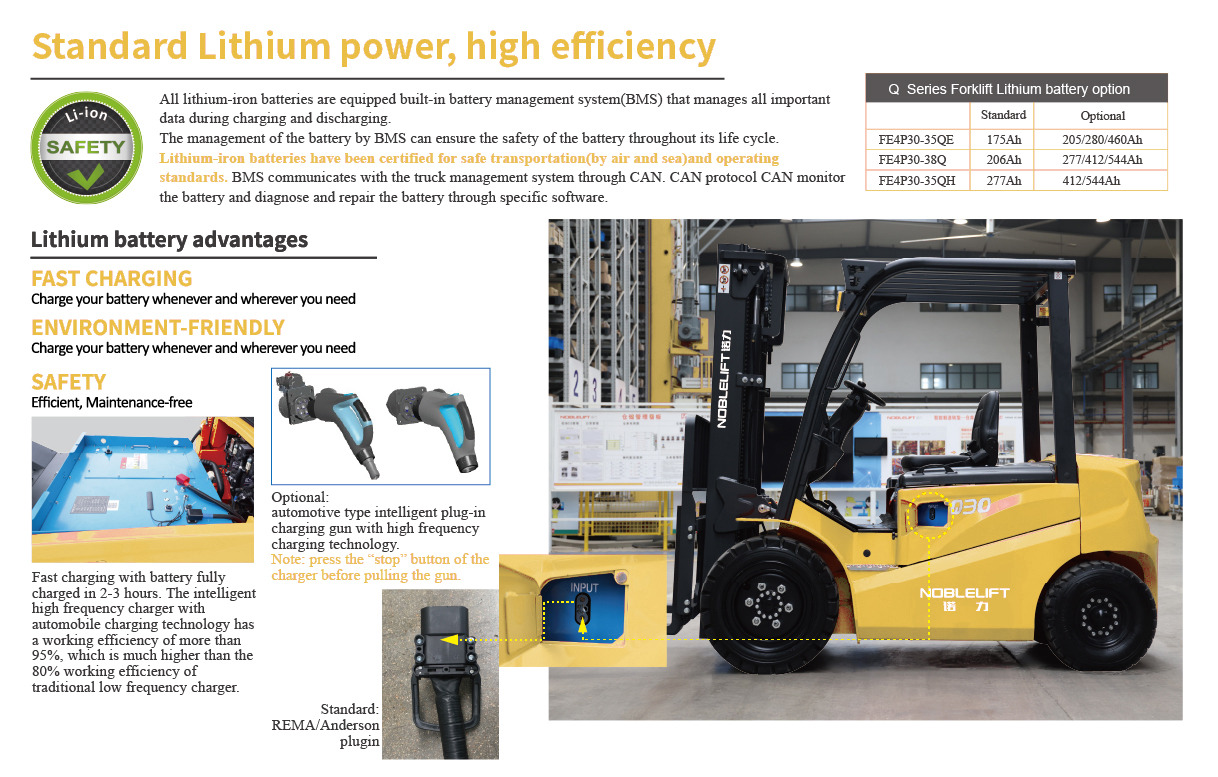

Battery  voltage,nominal capacity K5   (option)	V/Ah / 76.8/175   (205/280/460) / 76.8/206   (277/412/554) / 80/400   （440） / 76.8/206   (277/412/554) / 76.8/277   (412/554) / 76.8/175   (205/280/460) / 76.8/206   (277/412/554) / 80/400   （440） / 76.8/206   (277/412/554) / 76.8/277   (412/554) / 76.8/206   (277/412/554)

Se fullständig information hos Noblelift →

Denna sida uppdateras automatiskt utifrån Noblelifts produktsortiment.
