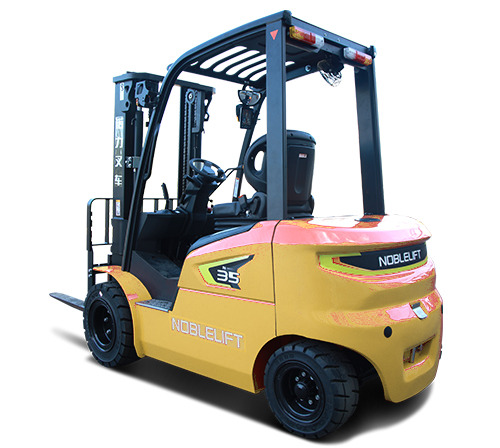

FEP-20-35NP/40-50NP

2000—5000kg NP Series Electric Forklift

Specifikationer

Manufacturer's  type designation FEP-20-NP / FEP-25-NP / FEP-30-NP / FEP-35-NP / FEP-40-NP / FEP-45-NP / FEP-50-NP
Load  capacity/rated load kg / 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000
Service  weight incl. battery kg / 3790 / 3942 / 4573 / 4748 / 6210 / 6535 / 6965
Free  lift      mm / 140 / 140 / 145 / 145 / 150 / 150 / 150
Load  centre distance mm / 500 / 500 / 500 / 500 / 500 / 500 / 500
Fork  dimensions (s/e/l) s/e/l(mm) / 40/122/1070 / 40/122/1070 / 45/122/1070 / 50/122/1070 / 50/122/1070 / 50/150/1070 / 55/150/1070
Turning  radius          mm / 2100 / 2100 / 2220 / 2220 / 2635 / 2635 / 2635
Travel  speed,laden/unladen km/h / 18/19 / 18/19 / 18/19 / 18/19 / 18/18 / 18/18 / 18/18
Max.Gradient  performance,laden/unladen % / 20/20 / 20/20 / 20/20 / 15/20 / 15/20 / 15/20 / 15/20
Battery voltage,nominal capacity K5    V/Ah / 80/280/324 / 80/280/324 / 80/280/324/412 / 80/280/324/412 / 80/536 / 80/536 / 80/536
80/200/268/400/536 80/684/804/912
Motor  control mode AC/PMSM / AC/PMSM / AC/PMSM / AC/PMSM / PMSM / PMSM / PMSM


Se fullständig information hos Noblelift →

Produktbeskrivning

FEP-20-35NP/40-50NP
FEP-20-35NP/40-50NP
FEP-20-35NP/40-50NP

Denna sida uppdateras automatiskt utifrån Noblelifts produktsortiment.
