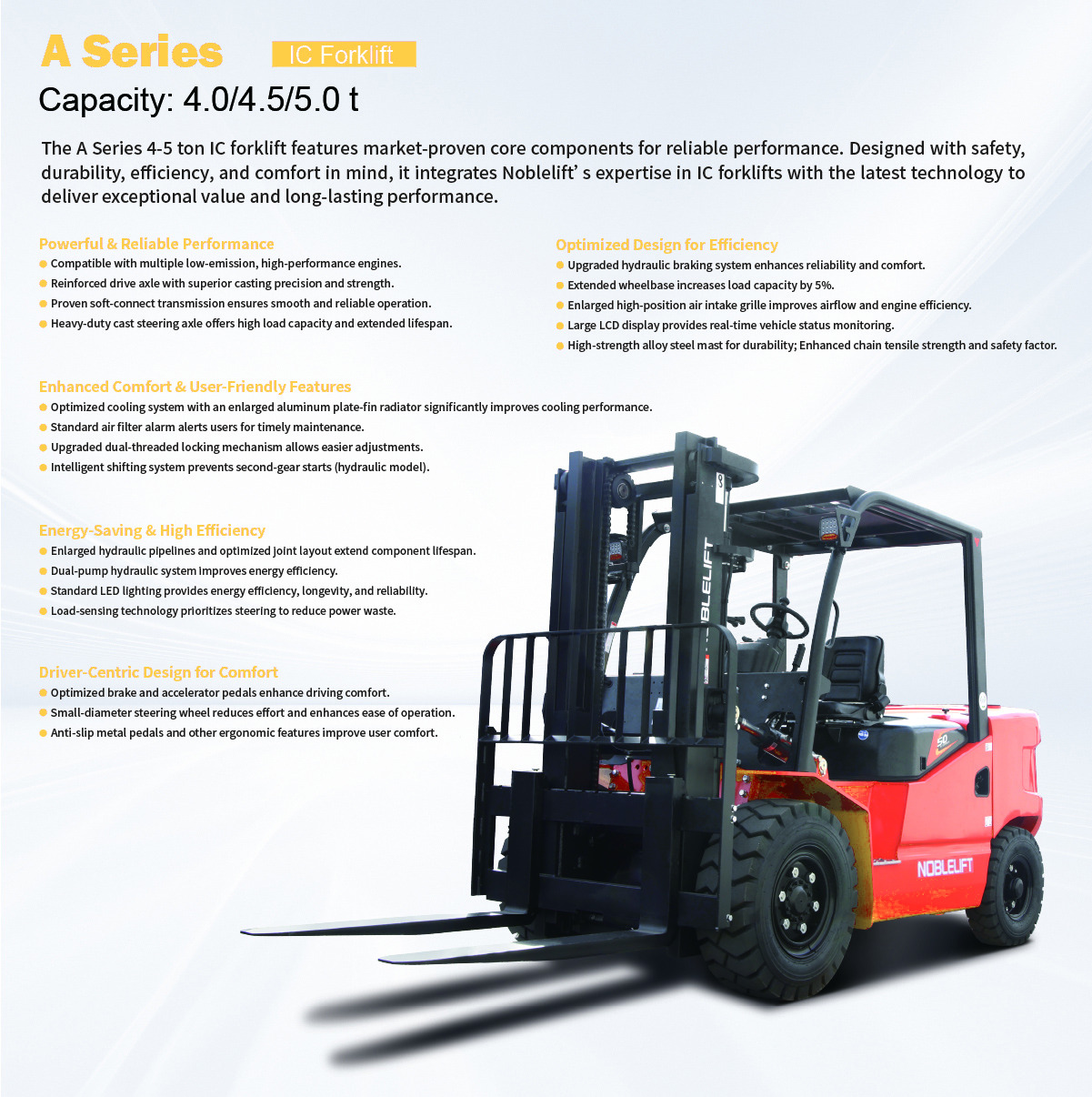

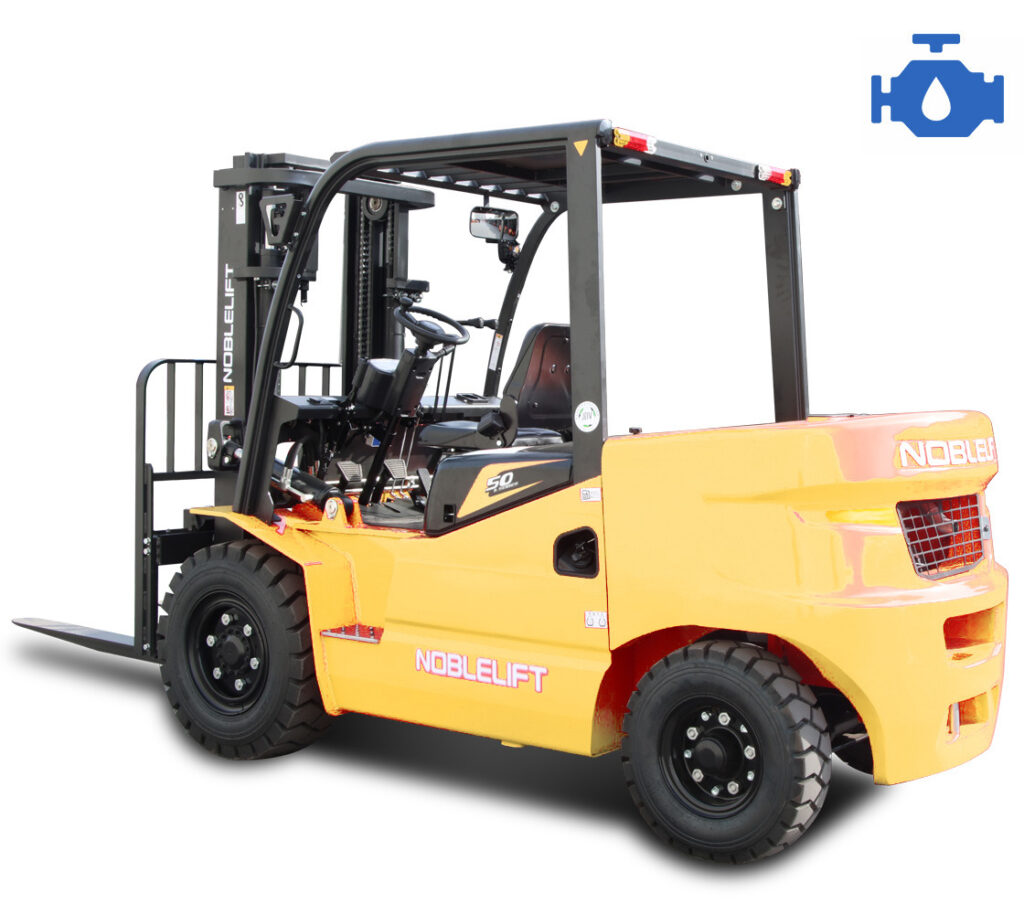

4000/4500/5000kg A Series IC Forklift
Specifikationer
| Manufacturer's type designation | CPD40 / CPD45 / CPD50 |
|---|---|
| Load capacity/rated load | kg / 4000 / 4500 / 5000 |
| Service weight | kg / 6550 / 6750 / 7000 |
| Lift height | mm / 3000 / 3000 / 3000 |
| Fork dimensions s/e/l | (mm) / 1070/150/50 / 1070/150/50 / 1070/150/50 |
| Overall length （Including cargo fork） | mm / 4305 / 4305 / 4305 |
| Turning radius | mm / 2930 / 2930 / 2930 |
| Travel speed,laden/unladen | km/h / 24/25 / 21/22 / 21/22 / 24/25 / 21/22 / 21/22 / 24/25 / 21/22 / 21/22 |
| Max.Gradient performance,laden/unladen S2 | % / 26/20 / 22/20 / 22/20 / 26/20 / 22/20 / 22/20 / 26/20 / 22/20 / 22/20 |
| Engine builder | Quanchai V35 (China Ⅳ) / Mitsubishi S6S (Euro IIIA) / Xinchai （EuroⅤ） / Quanchai V35 (China Ⅳ) / Mitsubishi S6S (Euro IIIA) / Xinchai （EuroⅤ） / Quanchai V35 (China Ⅳ) / Mitsubishi S6S (Euro IIIA) / Xinchai （EuroⅤ） |
| Transmission type | Hydrodynamic |
| Shifting mode | Hydraulic |
Se fullständig information hos Noblelift →
Produktbeskrivning
Denna sida uppdateras automatiskt utifrån Noblelifts produktsortiment.
