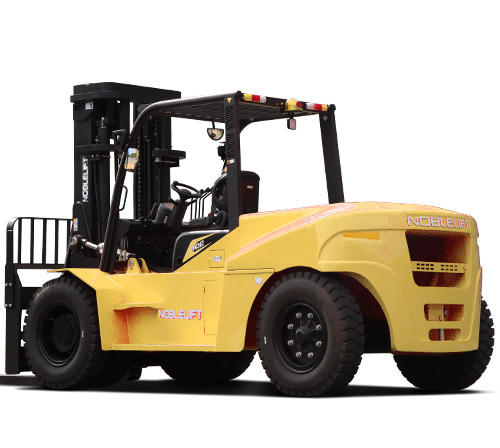

6000-10000kg A Series Lithium Forklift

Specifikationer

Manufacturer's   type designation	CPD60 / CPD70 / CPD80L / CPD90 / CPD100 / CPD100L
Load  capacity/rated load	kg / 6000 / 7000 / 8000 / 9000 / 10000 / 10000
Service  weight incl. battery	kg / 9050 / 9700 / 13200 / 13200 / 13900 / 13900
Lift  height	mm / 3000 / 3000 / 3000 / 3000 / 3000 / 3000
Load  centre distance	mm / 600 / 600 / 900 / 600 / 600 / 600
Fork dimensions	s/e/l(mm) / 60/150/1520 / 65/150/1520 / 70/175/1820 / 70/175/1670 / 80/175/1670 / 80/175/1670
Overall length	mm / 3670 / 3670 / 4040 / 4040 / 4050 / 4250
Turning  radius	mm / 3700 / 3700 / 3700 / 3700 / 3700 / 3900
Travel  speed   (laden/unladen)	km/h / 28/30 / 28/30 / 29/30 / 29/30 / 29/30 / 29/30
Max.Gradient  performance   (laden/unladen) S2	% / 22/20 / 22/20 / 25/23 / 24/22 / 23/21 / 22/20
Battery voltage,nominal capacity K5	V/Ah / 326.4/250 / 326.4/250 / 336/280 / 336/280 / 336/280 / 336/280
Motor control mode	IGBT/PMSM / IGBT/PMSM / IGBT/PMSM / IGBT/PMSM / IGBT/PMSM / IGBT/PMSM
